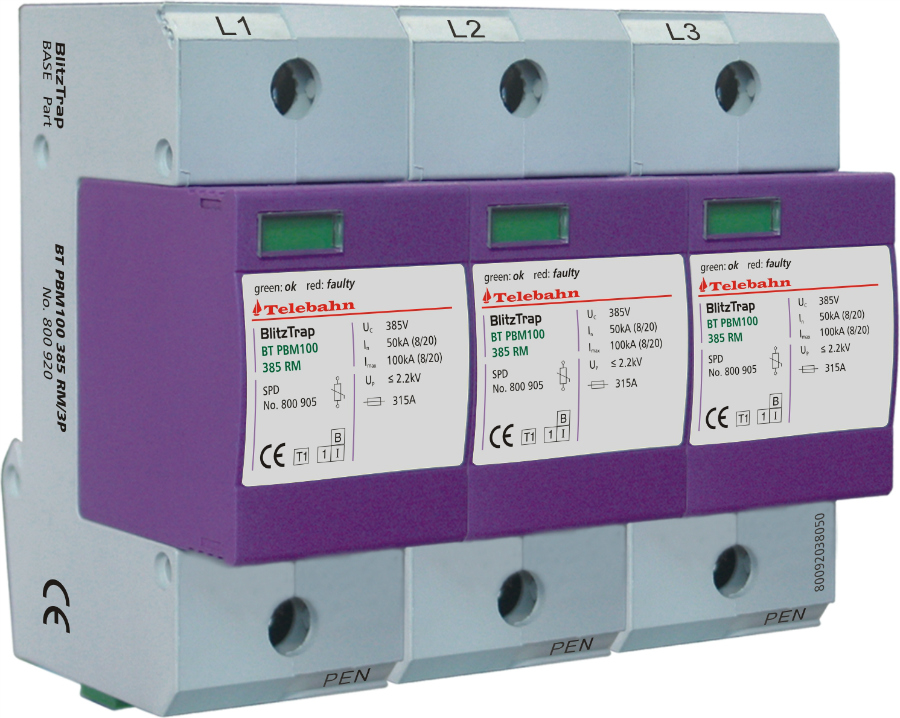

BT PBM100 385 RM/3P

Product introduction:

BT PBM100 385 RM/3P is designed to protect low voltage devices from surge damage, mainly used in power supply system such as power distribution room, distribution cabinet and other important power supply system, For installation at LPZ 0_B -2 or higher, specially designed for TN-C system. Applied in SPD Class I (Class B) for various power supply system of lightning current surge protection. Designed according to IEC 61643-1/GB 18802.1.

Main character:

1. Three-phase protection for TN-C system

2. Pluggable module, high discharge capacity, quick response

3. Double thermal disconnection devices, providing more reliable protection

4. Multifunctional connection for conductors and busbars.

5. Green window will change when fault and also provide remote alarm control at the same time

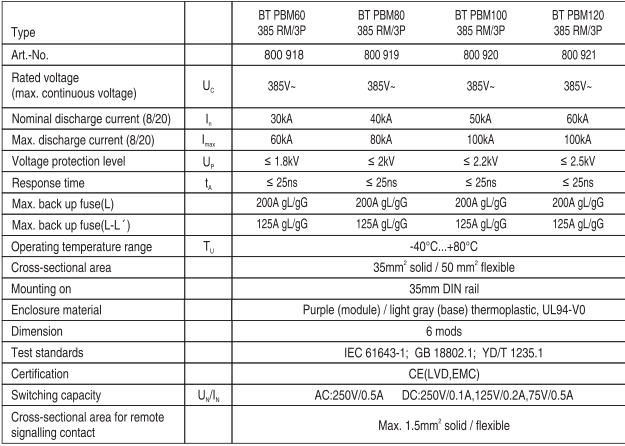

Parameters:
