BS NP 4TP 1X 5V

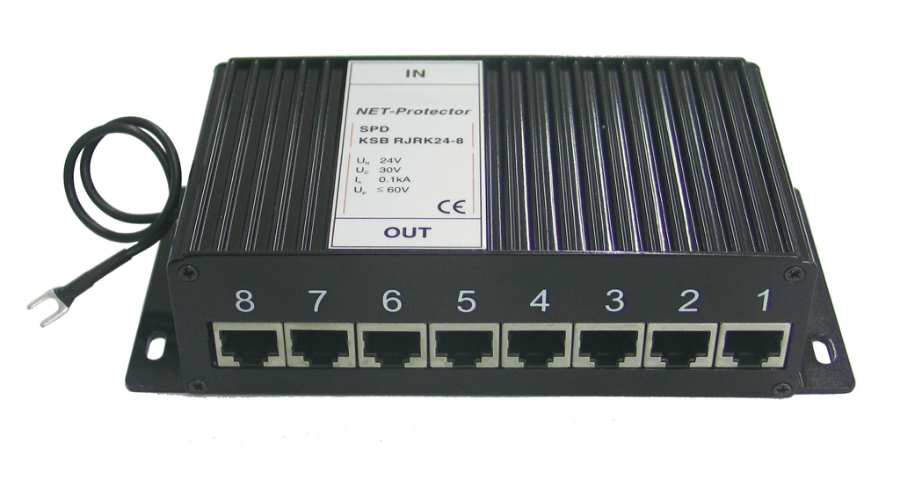

Product description:

According to IEC 61643-21/GB 18802.21, this surge protective module uses RJ45 interface, protected by four pair’s lines. Applied for the signal system such as: Ethernet 100BaseT/TX/T4, ATM155MBit/s, 100VG-Any-LAN, CDDI, 10Base T (IEEE 802.3), Token Ring (IEEE 802.5) etc. (e.g. Telecommunication, server, router, computer, and so on).

Main character:

1. Low voltage protection level

2. Quick response, high transmission speed

3. Low insertion loss

4. Module design for standard 19'' distribution cabinet

5. Available with 8, 16 or 24 ports RJ45 connection

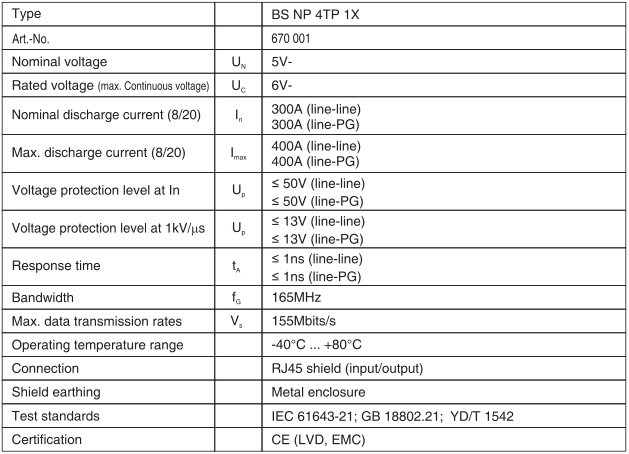

Technical data
