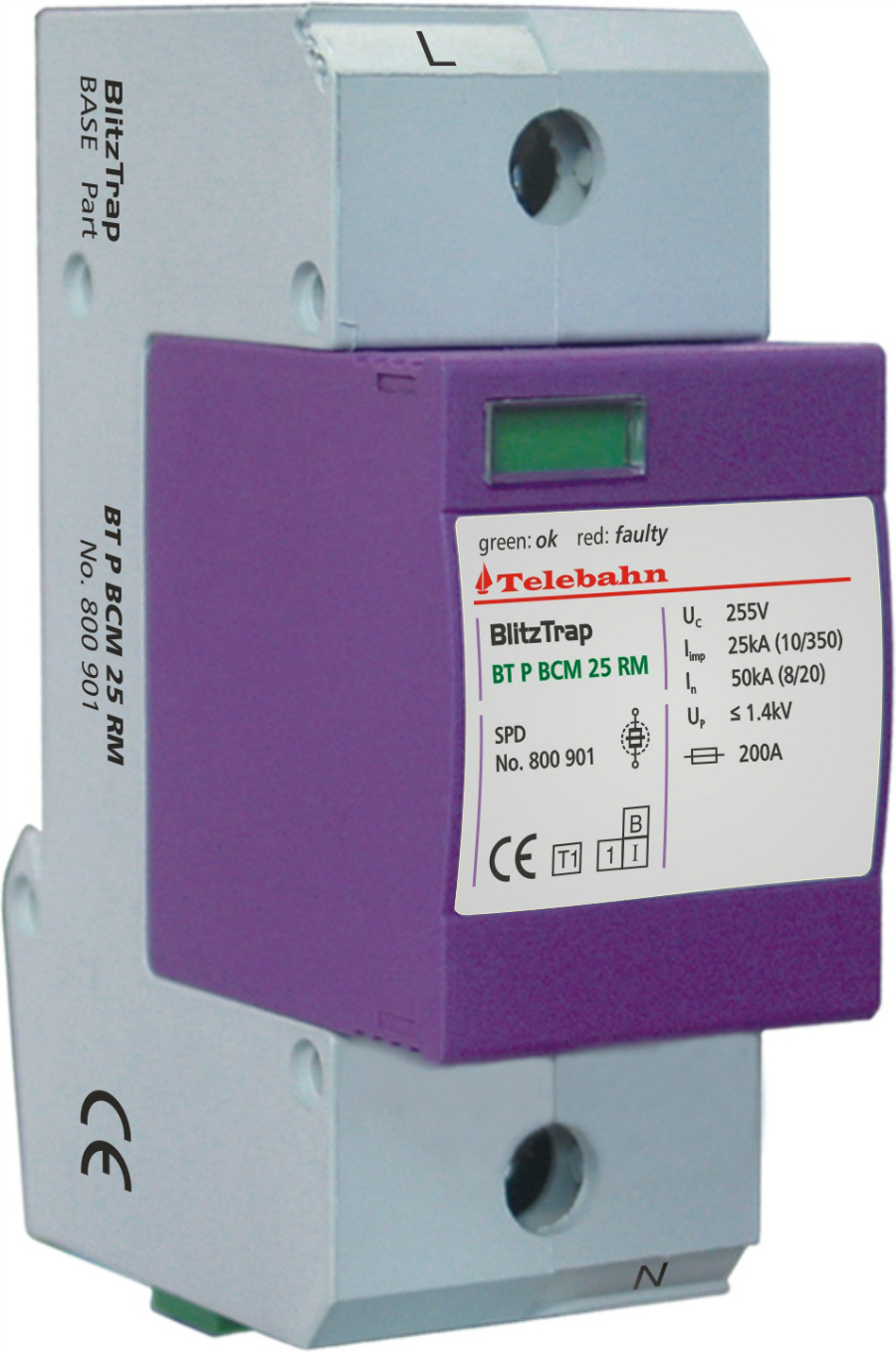

BT P BCM 25 RM

Products description:

For installation at LPZ 0A-1 or high, protecting low voltage equipment against lightning and surge damages. Applied in SPD Class Ⅰ (Class B) for various power supply system of lightning current surge protection. Designed according to GB 18802.1/IEC 61643-1.

Main character:

1. 10/350, 8/20 sparkgap

2. Single-pole lightning current arrester, pluggable

3. Adopt hermetical GDT technology, high follow current extinguishing capability

4. Extremely low voltage protection level

5. Double terminals for parallel or series (V-shape) connection

6. Multifunctional connection for conductors and busbars

7. Green window will change to red when fault occurs, also provide remote alarm terminal at the same time.

Parameters:
